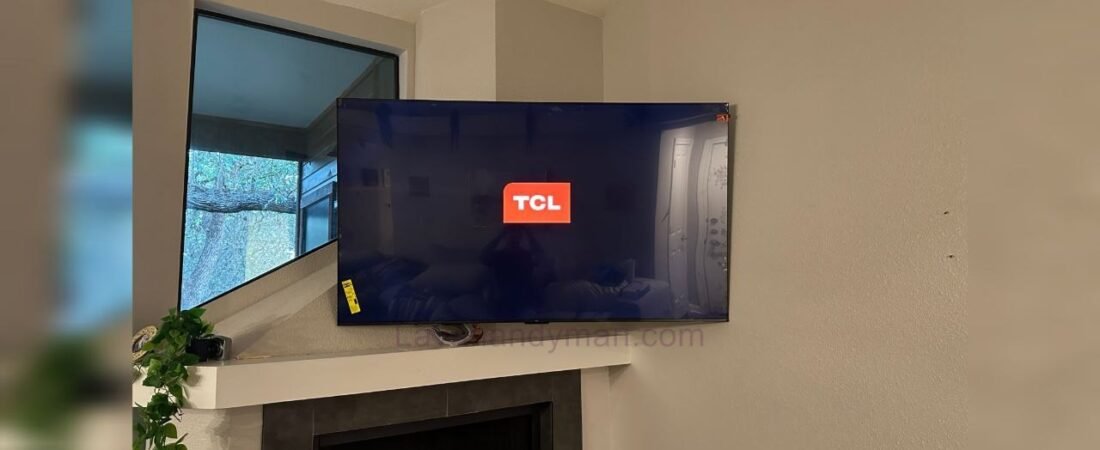

Complete Guide to Installing a TCL TV Above a Fireplace + Safety Tips and Standard Height
Installing a television above a fireplace has become one of the most popular trends in modern interior design. Many homeowners choose to mount their TV on the same wall as the fireplace to create a clean, stylish focal point in the living room. If you own a television from TCL Technology, it is important to carefully evaluate safety considerations, proper height standards, wall strength, and heat exposure before installation.
In this comprehensive guide, we cover everything you need to know about safely and correctly installing a TCL TV above a fireplace, ensuring both optimal viewing comfort and long-term durability.
Why Is Installing a TCL TV Above a Fireplace Popular?

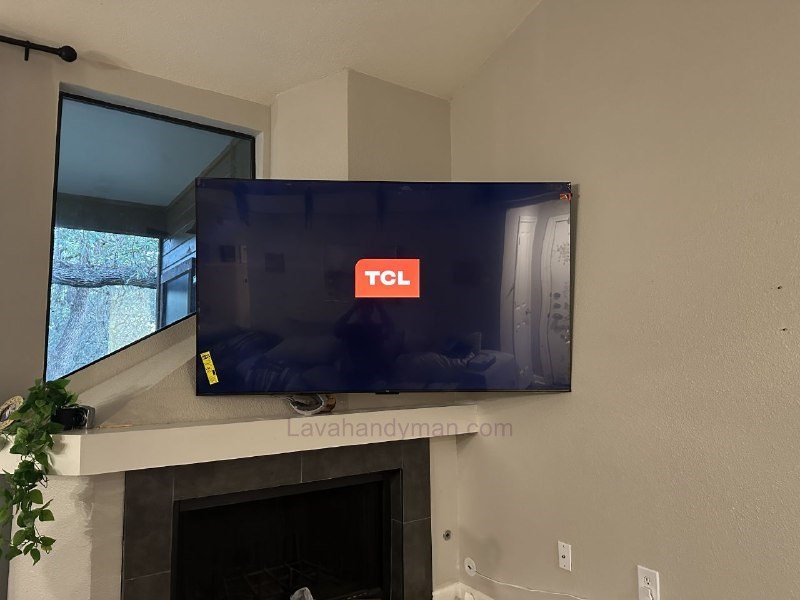

Installing a TCL TV Above a Fireplace
- Creates a modern and minimalist appearance
- Eliminates the need for a TV stand
- Establishes a central focal point in the room
- Enhances luxury-style interior design
- Maximizes usable living space
However, if not installed according to proper standards, this setup may lead to heat damage or uncomfortable viewing angles.
Section 1: Fireplace Heat Considerations (The Most Important Safety Factor)
Can Fireplace Heat Damage a TCL TV?
Yes, if not properly managed. LED, QLED, and Mini-LED televisions are sensitive to excessive heat. High temperatures can:
- Shorten the lifespan of internal circuit boards
- Reduce display quality over time
- Cause unexpected shutdowns
- Potentially void the warranty
Recommended Maximum Temperature
If the wall temperature above the fireplace exceeds 40°C (104°F), installation in that location is not recommended.
How to Test Wall Temperature
- Turn on the fireplace.
- Wait 30 to 60 minutes.
- Use a digital thermometer to measure the wall temperature.
If the wall becomes too hot to comfortably touch, increase the distance or install a heat-resistant barrier.

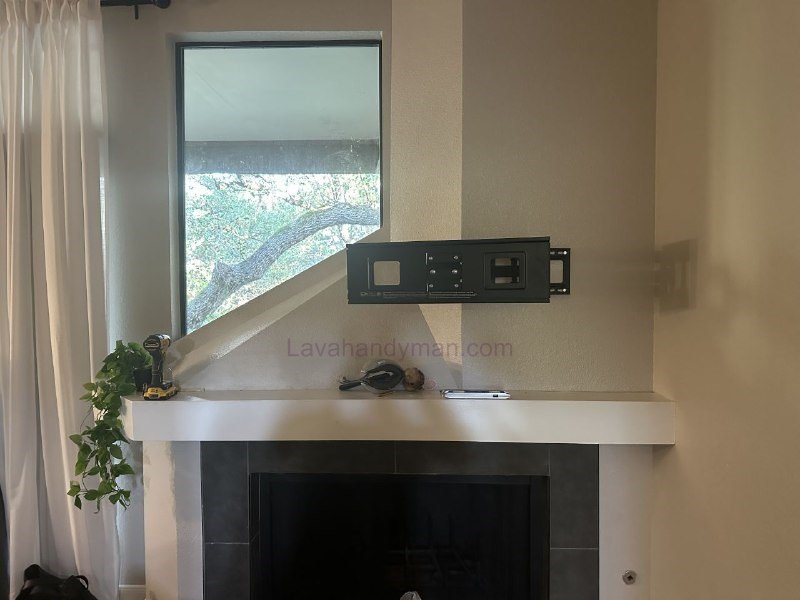

Installing a TCL TV Above a Fireplace
Section 2: Standard Height for Mounting a TV Above a Fireplace
One of the most common mistakes is mounting the TV too high.
Ideal Viewing Height
The center of the screen should align with eye level when seated.
Average seated eye level: approximately 100–110 cm (40–43 inches) from the floor.
Mounting too high can cause:
- Neck strain
- Poor viewing angles
- Reduced overall comfort
Professional Solution
Use a pull-down or adjustable wall mount that allows you to lower the TV while watching.
Installing a TCL TV Above a Fireplace
Section 3: Choosing the Best Mount for a TCL TV
Selecting the correct wall mount is essential for safety and stability.
Important Considerations Before Buying
✔ Confirm the TV’s exact weight
✔ Ensure VESA compatibility (e.g., 200×200 or 400×400)
✔ Choose a mount rated for more than the TV’s weight
Types of Mounts
- Fixed mount
- Tilt mount
- Full-motion mount
- Pull-down mount (ideal for above-fireplace installations)
For fireplace installations, tilt or pull-down mounts are the best choices.
Installing a TCL TV Above a Fireplace
Section 4: Evaluating Wall Type
Installation safety heavily depends on wall construction.
Concrete or Brick Walls
The strongest and most secure option.
Stone Walls
Require heavy-duty anchors and precise drilling.
Drywall
Wall studs must be located before mounting. Never mount directly to unsupported drywall.
Section 5: Standard Installation Steps
Step 1: Accurate Measurements
Mark the installation area based on standard viewing height.
Step 2: Level the Mount
Use a spirit level or laser level to ensure perfect alignment.
Step 3: Proper Drilling
Installing a TCL TV Above a Fireplace
Use appropriate tools and anchors for your wall type.
Step 4: Attach Mounting Brackets to the TV
Secure brackets evenly and tightly.
Step 5: Final Installation
Hang the TV and engage all safety locks.
Step 6: Cable Management
- Use wall cable covers
- Install a power outlet behind the TV
- Conceal cables for a clean appearance
Minimum Recommended Distance from the Fireplace
Suggested minimum clearance:
30 to 50 cm (12–20 inches) above the heat source.
Electric fireplaces generally produce less direct heat and are considered safer than gas or wood-burning fireplaces.
Common Mistakes When Installing a TCL TV Above a Fireplace
- Mounting the TV too high
- Ignoring heat testing
- Using low-quality anchors or screws
- Failing to consider TV weight
- Poor cable management
Installing a TCL TV Above a Fireplace
Pros and Cons of Mounting a TV Above a Fireplace
Advantages
✔ Modern, elegant appearance
✔ Space-saving solution
✔ Strong visual focal point
Disadvantages
✖ Potential heat damage
✖ Reduced viewing comfort
✖ More complex installation
When Is Fireplace Installation Not Recommended?
- The wall becomes excessively hot
- Proper viewing height cannot be achieved
- The wall lacks sufficient structural support
- The TV is used for extended daily viewing sessions
Installing a TCL TV Above a Fireplace
Step-by-Step Guide to Installing a TCL TV Above a Fireplace
Installing a TV above a fireplace can make your living space look modern and stylish, but it is only safe if proper standards and safety guidelines are followed. If your TV is from TCL Technology, this step-by-step guide will help you install it safely, professionally, and at the correct height.
Step 1: Check Fireplace Heat Before Installation
Purpose: Prevent heat damage to the TV
- Turn on the fireplace.
- Wait 30–60 minutes for the temperature to stabilize.
- Measure the wall temperature above the fireplace with a digital thermometer.
Rule of thumb: If the wall exceeds 40°C (104°F), do not install the TV there.
Solution: Increase the distance or install a heat-resistant shelf or barrier between the fireplace and the TV.
Step 2: Determine Standard Mounting Height
Purpose: Avoid neck strain and poor viewing experience
- The center of the screen should align with your eye level while seated (approximately 100–110 cm / 40–43 inches from the floor).
- If the fireplace is too high, use a pull-down or adjustable mount so the TV can be lowered while watching.
Installing a TCL TV Above a Fireplace
Step 3: Choose the Right Wall Mount
Key points:
- Check the TV’s weight.
- Ensure VESA compatibility (e.g., 200×200 or 400×400).
- Choose a mount rated for a higher weight than the TV.
Professional tip: Tilt or pull-down mounts are best for above-fireplace installations.
Step 4: Check Wall Type
- Concrete or brick walls: strongest and most secure, requires hammer drill and anchors.
- Stone walls: need precise drilling and heavy-duty screws.
- Drywall: must attach to studs; never mount directly on unsupported drywall.
Step 5: Mark the Mounting Points Accurately
- Position the mount on the wall.
- Use a level (manual or laser) to ensure it is straight.
- Mark the drill points with a pencil.
This ensures the TV hangs perfectly straight and centered.
Step 6: Drill Holes and Install the Mount
- Drill holes according to the wall type.
- Insert appropriate anchors or bolts.
- Secure the mount firmly; it should have no wobble.
Step 7: Attach Brackets to the TV
- Screw the brackets onto the back of the TV.
- Do not overtighten the screws.
- Make sure the brackets are perfectly aligned.
Step 8: Mount the TV on the Wall
- With the help of another person, lift the TV onto the mount.
- Engage all safety locks to secure it.
Tip: Always perform this step with at least two people.
Step 9: Cable Management
- Use wall cable covers.
- Route cables inside the wall if possible.
- Install a power outlet behind the TV for a clean, professional look.
Step 10: Final Safety Check
Check the mount and brackets for stability.
Turn on the TV.
Turn on the fireplace and verify that heat is not affecting the TV.
Installing a TCL TV Above a Fireplace
Types of Motion Mounts for Installing a TV Above a Fireplace
For mounting a TV above a fireplace, the best choice is motion mounts (Articulating / Full-Motion Mounts). These mounts allow you to tilt the TV downward, forward, or to an angle for a comfortable viewing experience. This is especially important when the TV is installed higher than eye level, as a motion mount corrects the viewing angle and reduces neck strain.
🔹 1. Pull-Down Mount
📌 The ideal choice for above-fireplace installation
✔ Pulls the TV downward to eye level
✔ Provides ergonomic and comfortable viewing
✔ Perfect for tall fireplaces
✔ Reduces neck strain and eye fatigue
Main Advantage: Corrects the line of sight without changing the TV’s placement.
🔹 2. Tilt Mount
📌 A simple and cost-effective option
✔ Tilts the TV slightly downward
✔ Improves the viewing angle
✔ More affordable than a Pull-Down mount
Best for: TVs that are not very high and only need a slight angle adjustment.
Installing a TCL TV Above a Fireplace
🔹 3. Full Motion / Articulating Mount
📌 Offers maximum flexibility
✔ Moves the TV forward, backward, up, down, and sideways
✔ Ideal for multi-purpose rooms or when viewing from different angles
✔ Provides the highest level of adjustment
Advantage: Full control of the viewing angle from almost any position in the room.
Quick Comparison
| Mount Type | Fireplace-Friendly | Adjustable | Viewing Comfort |
|---|---|---|---|
| Pull-Down | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ |
| Tilt | ⭐⭐⭐ | ⭐⭐ | ⭐⭐⭐ |
| Full Motion | ⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐ |
Installing a TCL TV Above a Fireplace
Key Points When Choosing a Motion Mount
✅ Check the TV’s weight and size
✅ Ensure VESA compatibility with the mount
✅ Make sure the mount supports more weight than the TV
✅ For above-fireplace installations, Pull-Down or Tilt with a large tilt range is recommended
Practical Recommendations
Want to view from multiple angles → Full Motion mount is ideal
TV is mounted very high → Pull-Down is the best choice
Only slight angle adjustment is needed → Tilt mount is suitable
Final Conclusion
Installing a TCL TV above a fireplace can create a sleek and modern living space, but only when safety, ergonomic standards, and proper mounting techniques are followed. The most important factors include:
- Controlling fireplace heat
- Maintaining proper viewing height
- Selecting the right wall mount
- Ensuring structural wall integrity
- Performing professional installation
